Dupont SFP-2660 PVDF Hollow Fiber UF Membrane 33m² for Wastewater Reuse

Dupont SFP-2660 PVDF Hollow Fiber UF Membrane 33m² for Wastewater Reuse

  • Dupont SFP-2660 PVDF Hollow Fiber UF Membrane 33m² for Wastewater Reuse
  • Dupont SFP-2660 PVDF Hollow Fiber UF Membrane 33m² for Wastewater Reuse
Dupont SFP-2660 PVDF Hollow Fiber UF Membrane 33m² for Wastewater Reuse
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: Dupont
Orzecznictwo: CE
Model Number: SFP-2660
Zapłata:
Minimum Order Quantity: 1 pc
Cena: Negocjowalne
Packaging Details: standard export packing
Delivery Time: 5- 8 work days
Payment Terms: T/T,Western Union
Supply Ability: 60000 Units per Month
Kontakt
Szczegółowy opis produktu
Membrane area of SFP-2660: 33m² Nominal pore diameter of SFP-2660: 0.03 µm
Membrane Operating pressure of SFP-2660: 0.35MPa Membrane Flow range of SFP-2660: 1.3 – 4.0 m3/hr
Filtration accuracy: 0.01-0.1µm Filter method: External pressure
Temperature: 1-40ºC Membrane Particle size (max.): 300 µ
Membrane Max backwash pressure: 2.5 bar Product Advantages: High-Flux, Low-Fouling Powerhouse
Application: Wastewater Reuse & RO Pretreatment
Podkreślić:

PVDF hollow fiber UF membrane

,

ultrafiltration membrane for wastewater reuse

,

Dupont SFP-2660 UF membrane 33m²

Dupont SFP-2660 PVDF Hollow Fiber UF Membrane 33m² for Wastewater Reuse
Product Overview

The Dupont SFP-2660 is a high-performance polyvinylidene fluoride (PVDF) hollow fiber ultrafiltration (UF) membrane, engineered for exceptional filtration efficiency in municipal wastewater reuse systems. With its 0.02 μm pore size and 10kDa molecular weight cutoff (MWCO), it effectively removes suspended solids, bacteria (>99.9%), and macromolecular organics.

Attribute Value
Membrane area 33m²
Nominal pore diameter 0.03 µm
Operating pressure 0.35MPa
Flow range 1.3 – 4.0 m3/hr
Filtration accuracy 0.01-0.1µm
Filter method External pressure
Temperature range 1-40ºC
Max particle size 300 µ
Max backwash pressure 2.5 bar
Product Advantages High-Flux, Low-Fouling Powerhouse
Application Wastewater Reuse & RO Pretreatment
Key Features & Benefits
  • 0.03 μm Nominal Pore Size - Effectively removes bacteria, viruses, colloids, and suspended solids
  • High Chemical Resistance - Tolerates pH 2-11 (operating) and up to 2,000 ppm NaOCl
  • Outer-Pressure Design - Handles higher TSS levels (up to 100 mg/L) with reduced pretreatment
  • High Flux & Low Energy Consumption - Optimized for 50 m³/hr (220 gpm) systems
  • Compact Design - 6-Inch Diameter, 60-Inch Length for space-constrained installations
Technical Specifications
Model SFP-2660
Membrane Material PVDF (Hydrophilic Modified)
Filtration Mode Dead-End / Crossflow (Outer-Pressure)
Max Operating Pressure 6.25 bar
Max Backwash Pressure 2.5 bar
Temperature Range 1-40°C (34-104°F)
Effective Membrane Area ~51 m² (549 ft²)
Certifications NSF/ANSI 61 & 419 (for potable water)
Dupont SFP-2660 PVDF Hollow Fiber UF Membrane 33m² for Wastewater Reuse 0

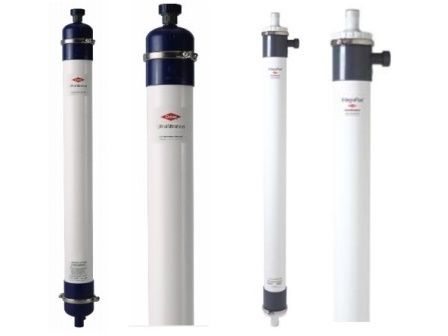

Figure 1: SFP and SFD 2660 (6-inch diameter)
Operating Parameters
Parameter SI units US units
Filtrate Flux @ 25ºC 40-120 l/m2/hr 24-70 gfd
Flow range 1.3 - 4.0 m3/hr 5.9 - 17.3 gpm
Temperature 1-40ºC 34-104ºF
Max. inlet module pressure (@ 20ºC) 6.25 bar 93.75 psi
Max operating TMP 2.1 bar 30 psi
Max operating air scour flow 12 nm3/hr 7.1 scfm
Max backwash pressure 2.5 bar 36 psi
Operating pH 2-11
NaOCl (max.) 2,000 mg/L
TSS (max.) 100 mg/L
Operation Guidelines

Proper start-up of a UF system is essential to prepare the membranes for operating service and to prevent membrane damage. Following the proper start-up sequence helps ensure system operating parameters conform to design specifications.

  • Avoid abrupt pressure variations during start-up, shutdown, or cleaning
  • Flush the UF system to remove shipping solution prior to start-up
  • Remove residual air from the system prior to start up
  • Target a permeate flow of 60% of design during initial operations
Note: If operating limits and guidelines are not strictly followed, the limited warranty will be null and void.
Product Details
Place of Origin China
Brand Name DOW (Acquired by DuPont)
Certification CE
Model Number SFD-2660
Minimum Order Quantity 1 pc
Price Negotiable
Delivery Time 5-8 work days
Supply Ability 60,000 Units per Month
Dupont SFP-2660 PVDF Hollow Fiber UF Membrane 33m² for Wastewater Reuse 1
Figure 2: Membrane dimensions and specifications
Additional Resources

For application cases, please visit: www.fgwater.com/Industries/

For detailed parameters:
