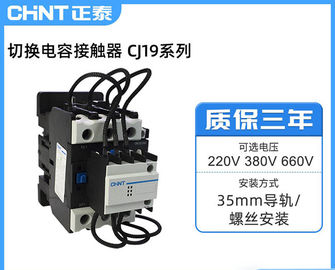

Stycznik przełączający kondensator prądu przemiennego 3P 25A ~ 170A IEC60947 EN / IEC60947-4-1
Product Details
| Prąd znamionowy obwodu głównego: | 25-95A, 115 ~ 170A | Rodzaj energii elektrycznej: | AC, AC / DC |
|---|---|---|---|
| Napięcie znamionowe obwodu głównego: | 600 V, 220 V, 380 V, 110 V, 24 V. | Liczba biegunów: | 3,4 |
| Fazy: | 3,1 fazy | Częstotliwość: | 50 / 60Hz |
| Nazwa produktu: | Stycznik Ac CJX2N-D09,3 biegun Stycznik Ac | Prąd znamionowy: | 95A, 115-170A |
| standardowe: | IEC60947, EN / IEC60947-4-1 | ||
| Podkreślić |
stycznik ac,centralny stycznik ac |
||
Product Description
| Product Series | CJ19 |
|---|---|
| product type | Capacitor Switching Contactor |
| Product short name | CJ19 Contactor |
| Contactor application area | Power factor correction |
| Control loop type | AC |
| Coil type | AC 50/60 Hz |
| Number of poles | 3P |
| Loop contact type | 3 NO |
| Contactor level code | DPK |
| Auxiliary contact type | 1 NO + 2 NC |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Reactive power | 20 kvar on...220...240 V 50/60 Hz on <55 °C 33.3 kvar on 400...440 V 50/60 Hz on <55 °C 48 kvar on 660...690 V 50/60 Hz on <55 °C |
| protection cap | no |
|---|---|
| Auxiliary contact type | Type mechanical connection 1 NO + 1 NC in accordance with IEC 60947-5-1 Type mirrored to the main contact state 1 NC in accordance with IEC 60947-4-1 |
| Installation method | Rail mounting Base plate installation |
| Tightening torque | Power circuit: 5 Nm through the terminal |
| Rated working voltage [Ue] | Power circuit: <= 690 V AC 50/60 Hz |
| height | 180 mm |
| width | 75 mm |
| depth | 150 mm |
| product weight | 1.3 kg |
| Standards compliant | IEC 60831 GB 14048.4 IEC 60947-4-1 IEC 60070 |
|---|---|
| certified product | CCC |
| IP protection level | IP2x complies with IEC 60529 |
| Protective measures | TH conforms to IEC 60068-2-30 |
| Operating temperature | -5...60 °C |
| Storage ambient temperature | -60...80 °C |
| Working elevation | 3000 m without |
Product Highlights
Chint CJ19 Stycznik przełączający kondensator 3P, 25A ~ 170A AC-3 AC-1 Napięcie cewki 24 V, 110 V, 230 V, 380 V main information Product Series CJ19 product type Capacitor Switching Contactor Product short name CJ19 Contactor Contactor application area Power factor correction Control loop type AC ...
