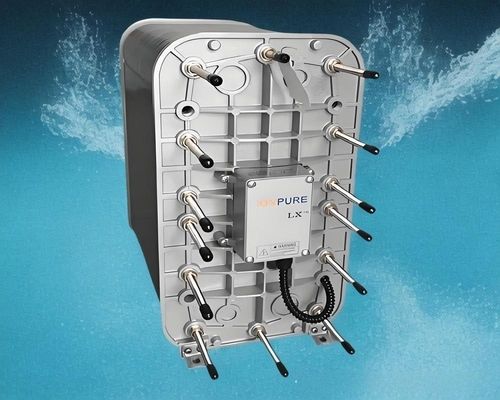

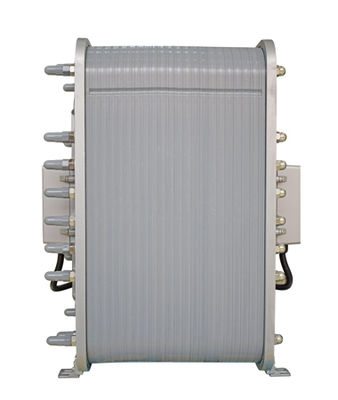

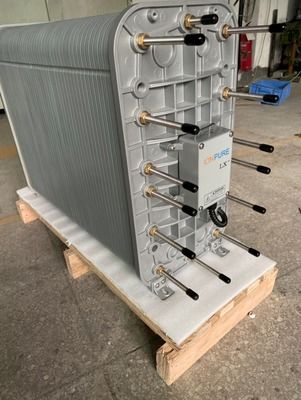

Ionpure CEDI LX-Z IP-LXM24Z-5 EDI Module for Biopharmaceutical Industry

Szczegóły Produktu:

Place of Origin:	China
Nazwa handlowa:	IONPURE
Orzecznictwo:	CE
Model Number:	IP-LXM24Z-5
Dokument:	fgwater-ionpure-lxz-ds.pdf

Zapłata:

Minimalne zamówienie:	1 szt
Cena:	Negocjowalne
Packaging Details:	standard export packing
Delivery Time:	5- 8 work days
Payment Terms:	T/T,Western Union
Supply Ability:	60000 Units per Month

Kontakt

Wszystkie produkty

Skrzynka rozdzielcza oświetlenia (33)

Skrzynka rozdzielcza elektryczna (33)

Odporna na warunki atmosferyczne skrzynka rozdzielcza (48)

Obudowa z włókna szklanego (60)

Automatyczny przełącznik transferu ATS (68)

Moduły EDI (139)

Moduły membranowe ultrafiltracyjne (57)

Wyłącznik przemysłowy (85)

system solarny pv (72)

Stacja ładowania elektrycznych pojazdów elektrycznych (21)

Modułowe przekaźniki czasowe (12)

Przekaźniki kontroli automatyki (64)

Transformator regulatora napięcia (16)

Filmowe balony oświetleniowe (136)

Moon Balloon Light (131)

Balony LED na statywie (115)

Nadmuchiwana wieża oświetleniowa (62)

Akcesoria do listew zaciskowych (6)

Szczegółowy opis produktu

24Z-5 Minimum Flow Rate m3/hr (gpm):	1.36 (6.0)	24z-5 prędkość przepływu M3/HR (GPM):	2,8-4,2 (12,5-18,8)
24Z-5 Shipping Weight kg (lbs)**:	115 (254)	24Z-5 Operating Weight kg (lbs):	92 (103)
Module Recovery:	90–95%	Stack Advantages:	Wide Range Of Flow,Low Operating Costs, Providing Stable And Reliable High Purity Water
Stack DC Voltage:	0–400	Stack DC Amperage:	1.0–6.0
Product Application:	Biopharmaceutical Industry
Podkreślić:	Ionpure CEDI LX-Z EDI module , EDI module for biopharmaceutical industry , IP-LXM24Z-5 EDI module with warranty

Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry

Key Specifications

Attribute	Value
24Z-5 Minimum Flow Rate m3/hr (gpm)	1.36 (6.0)
24Z-5 Design Flow Rate m3/hr (gpm)	2.8-4.2 (12.5-18.8)
24Z-5 Shipping Weight kg (lbs)	115 (254)
24Z-5 Operating Weight kg (lbs)	92 (103)
Module Recovery	90–95%
Stack Advantages	Wide Range Of Flow, Low Operating Costs, Providing Stable And Reliable High Purity Water
Stack DC Voltage	0–400
Stack DC Amperage	1.0–6.0
Product Application	Biopharmaceutical Industry

Product Features

Superior electrical insulation performance
Double O-ring seal ensures leak-free operation
Operating costs significantly lower than traditional ion exchange
No acid, alkali, neutralization system or resin tank required
Continuous operation at 7bar (100psi), 45C (113F)
Patented "full-filled" concentrate chamber eliminates need for salt addition
Produces water quality equal to or better than mixed bed water
Continuous water production with stable quality

Technology Components

The EDI membrane block removes ions through built-in ion exchange resin (Na+ represents cations and C1- represents anions). The system consists of:

Pure water chamber - mixed resin layer between anion and cation exchange membranes
Concentrated water chamber - working interlayer between pure water chambers
Electrode plates - conductive plates generating electric field during operation

Application Areas

Solar photovoltaic industry: pure/ultrapure water for silicon processing
Electronics industry: ultrapure water for semiconductor manufacturing
Biopharmaceutical industry: GMP-compliant water for production
Chemical industry: process water for chemical production
Power industry: boiler feed water and ultrapure water

LX-Z Series Advantages

Wide flow range from 0.22 m3/h (1 gpm) to 10m3/h (44 gpm) per module
Lower operating costs than conventional ion exchange
Chemical-free mixed-bed quality deionized water
Continuous production with consistent quality
NSF® 14 and NSF® 61 compliant materials

Quality Assurance

CE mark certified, each module undergoes strict factory testing to meet industry standards. Manufactured under ISO 9001 and ISO 14000 quality and environmental management systems.

Operating Environment

Install indoors away from direct sunlight. Ambient temperature must not exceed 113°F (45°C) for stable operation and extended service life.

Technical Specifications

Typical Module Performance

Parameter	Value
Recovery	90-95%
DC Voltage	0-400
DC Amperage	1.0-6.0
Product Resistivity	Minimum Flow > 17 MW-cm† Maximum Flow > 7 MW-cm†
Silica (SiO2) Removal	90-99%, depending on feed conditions

* Performance data based on maximum inlet water conductivity (40 μS/cm)

Feed Water Specifications

Parameter	Requirement
Conductivity (including CO2 and Silica)	< 40 μS/cm
Temperature	5-45˚C (41-113˚F)
Inlet Pressure	1.4-6.9 bar (20-100 psig)
Total Chlorine (as Cl2)	< 0.05 ppm
Total Hardness (as CaCO3)	< 1.0 ppm
